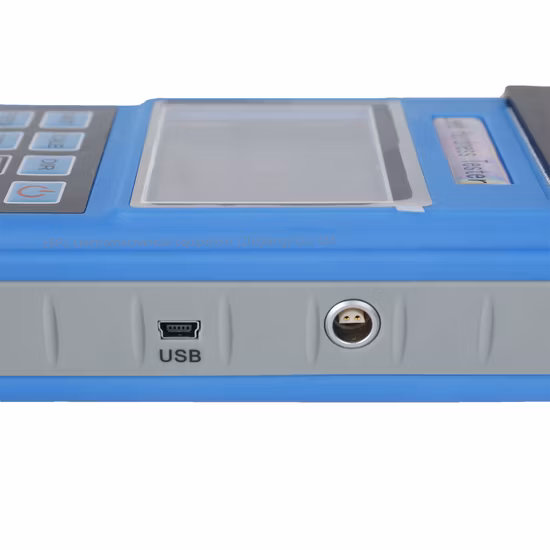

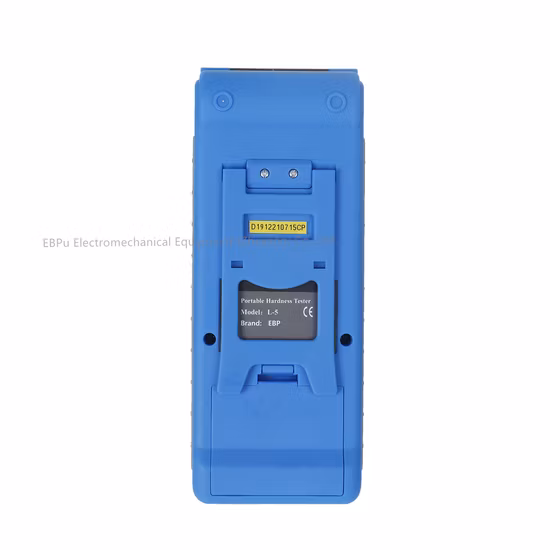

Industrialized Housing Design Hardness Testing Instrument of User Calibration Function

Overview

Basic Info.

Model NO.	L-5
Calibrating Method	Standard Hardness Test Blocks
Rated Voltage	3V
Support Language	English or Chinese
Customized	Customized
Software	Yes
Test Direction	360 Degree
Tensile Strength	374 to 2652 N/M 2
Hardness Scales	Hl, Hb, Hrb, HRC, Hra, Hv, HS.
Impact Prob	D Prob (or C / DC / Dl / G / D+15 / E)
Data Communication Interface	USB2.0
Name	Portable Digital Hardness Testing Equipment
Transport Package	Plastic Carry Box + Carton Box
Specification	210mmx85mmx45mm
Trademark	EBP
Origin	Zhejiang, China
HS Code	9024102000
Production Capacity	300 Sets Per Month

Product Description

Product Description

Features:

1. Large screen(240*320 TFT display), showing all functions and parameters.2. Test at any angle, even upside down.3. Support "forged steel (Steel)" material, when using the D/DC impact device test "forged" sample, can read HB value directly, without the need for manual checking table.4. Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HRA, HV, HB, HS, HL and three types of strength values immediately.5. Seven impact devices are available for special application. Automatically identify the type of impact devices.6. Large capacity memory could store 600 groups (Relative to average times32~1 ) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc. 7. Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit. 8. Battery information indicates the rest capacity of the battery and the charge status.9. User calibration function.10.uUSB port with the PC humanity multifunctional data proceeding software.11. Original imported high speed thermal printer support the immediate printing function. It can save data permanently.12. Li rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 150 hours (EL off and no printing).13. Auto power off to save energy.14. Industrialized housing design, sturdy, compact, portable, high reliability, suitable for harsh operating environment, vibration, shock and electromagnetic interference.15. Excellent after-sale service system for high quality products---two years' guarantee and all life maintenance. Easy to buy and comfortable to use.3000mA Li Rechargeable Battery, Long working time

Main Application:1. Die cavity of molds2. Bearings and other parts3. Failure analysis of pressure vessel, steam generator and other equipment4. Heavy work piece5. The installed machinery and permanently assembled parts6. Testing surface of a small hollow space7. Material identification in the warehouse of metallic materials8. Rapid testing in large range and multi-measuring areas for large-scale work piece.
Instrument size:

Equipped with Hardness tester Data view software, can communication with computer / PC:

Technical Specification:

Measuring Range	HLD (170-960), HRC (17.9-69.5),HB (19-683), HV (80-1042), HS (30.6-102.6), HRA(59.1-88), HRB (13.5-101.7)
Impact Directions	Up, down, horizontal, slanting up, slanting down
Measuring Materials	Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel
Standards	ASTM A956, DIN50156-1, GB/T17394-1998
Hardness Scales	HL, HB, HRB, HRC, HRA, HV, HS.
Tensile Strength	374 to 2652 N/m 2
Display	240*320 TFT display (Color screen)
Memory	600 groups max. (relative to impact times 32~1)
Work Voltage	9V/500mA.
Interface Port	USB2.0
Dimensions	210 * 85 * 45mm (host).
Weight	0.6kg (host).
Continuous Working Period	about 150hours (With backlight off, no printing)

Packing list:

Item	Quantity	Remarks
Main Unit	1 PC
D type impact device	1 PC	With cable
Standard test block	1 PC
Cleaning brush (I)	1 PC
Small support ring	1 PC
Battery Charger	1 PC	9V 500mA
Paper for printing	1 PC
Manual	1 PC
Data Pro software	1 PC
Communication cable	1 PC
Instrument case	1 PC
